Material
- Softwoods
- Hardwoods
- Plywood
- Laminated panels
Application
- Glue Line Ripping
- Precision Edge Cutting
- Panel Processing
Machine Type
- Table Saws
- Sliding Table Saws
- Straight Line Rip Saws
- Gang Rip Saws

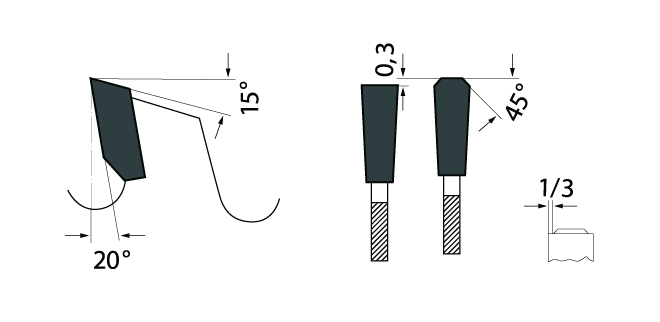

Engineered for precision and efficiency, our Glue Line Rip Saw Blades feature a Triple Chip Grind (TCG) geometry with a 20-degree hook angle, designed to deliver exceptionally smooth, glue-ready edges straight from the saw. This advanced tooth design eliminates the need for additional jointing or sanding, saving time and improving workflow.
Best suited for materials ranging from 1/8" to 1" thick, they provide reliable performance for high-quality woodworking applications.
| ORDER ID | DIAMETER | # OF TEETH | GRIND | BORE | KERF | PLATE | HOOK |
|---|---|---|---|---|---|---|---|
| RGL 010 030 058 126 | 10" | 30T | TCG | 5/8" | .126" | .087" | 20 |
| RGL 012 036 100 160 | 12" | 36T | TCG | 1" | .160" | .110" | 20 |
| RGL 012 036 070 165 | 12" | 36T | TCG | 70mm* | .165" | .118" | 20 |
| RGL 012 036 318 126 | 12" | 36T | TCG | 3-1/8"** | .126" | .083" | 20 |
| RGL 012 036 318 160 | 12" | 36T | TCG | 3-1/8"** | .160" | .110" | 20 |
| RGL 014 036 100 170 | 14" | 36T | TCG | 1" | .170" | .120" | 20 |
| RGL 014 036 318 170 | 14" | 36T | TCG | 3-1/8"** | .170" | .120" | 20 |
| RGL 014 036 070 170 | 14" | 36T | TCG | 70mm* | .170" | .120" | 20 |
| RGL 016 036 100 170 | 16" | 36T | TCG | 1" | .170" | .120" | 20 |
| RGL 018 040 100 184 | 18" | 40T | TCG | 1" | .184" | .134" | 20 |
*70mm Bore has double keyways (DKW) 20mm x 5mm to fit SCM Gang Saws
**3-1/8" Bore has one 1/4" x 1/4" keyway and a DKW 1/2"x 1/4"
